12 x 3W SSC LEDs (= 36W Power)
Light output comparable to 3W LEDs

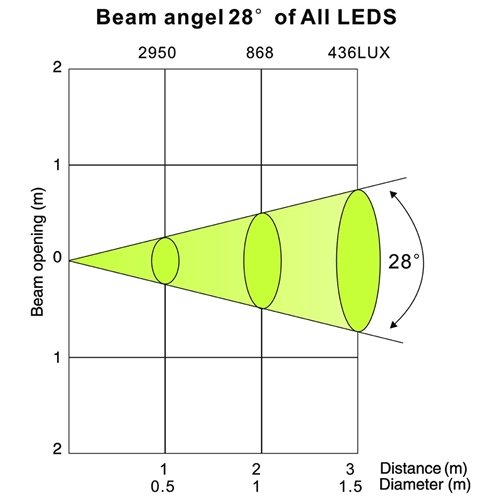

28-graden beam angle
Wash lenses for uniformly distributed beam
Single LED pixel control
Power & DMX loop through
Combibrackets: floorstand or mount
Specifications
– 12x 3W SSC LEDs, 36W total
– Long Life L.E.D. (rated at 100,000 Hours)
– Linear RGB color mixing allows for infinite color possibilities
– Compact design
– passive cooling
– 28 standard beam angle (Optional lenses TBA)
– Built-in, auto switching power supply
– DMX controllable
– USITT-DMX 512
– 3, 4, 6, 12 & 15 CH DMX control modes
– LED display with easy to use function keys
– 3 & 5 pin XLR data input & output
– IEC type, AC power input & output
– 8 built-in programs with speed control
– Strobe effect (1-25 flashed per second)
– Control each L.E.D. independently (12 & 15CH modes)
– Selectable dim options (Standard & Linear)
– 0-100% Dimming
– Master/ Slave auto program and sound trigger
– Multi-voltage: 100-240VAC, 50/60Hz
– On/Off Power switch
– Power Consumption: 50 watts
– Mounting bracket designed for floor, wall or truss mount
– Fixed eye bolt for safety cable
– Optional bracket kit available to hang up to (4) DLED 36 TRI BRICK`S (DLEDKIT)

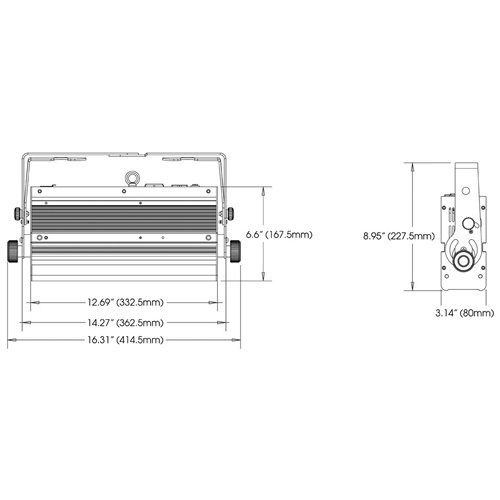

– Dimensions (LxWxH): 415 x 228 x 80mm
– Weight: 4,3kg
