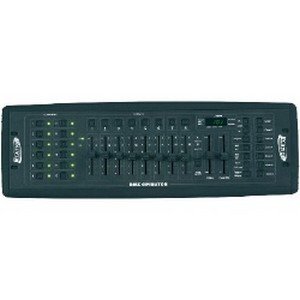

Elation DMX Operator I

An affordable solution for controlling DMX products
– Control up to192 DMX channels
– Programmable up to 240 scenes
– 12 individual fixture channels – Control up to 12 separate intelligent
lights with up to 16 DMX channels per fixture
– Fixtures with less than 16 DMX channels may be combined
on 1 DMX scanner button
– Record up to 6 programmable chases with fade time and speeds
– 8 individual faders provide easy programmability for Intelligent
Lighting or Dimmer Packs
– MIDI controllable
– DMX-512, 3-pin XLR signal
– Built-in Microphone
– Remote control: Blackout controlled by MIDI input signal
– Blind function – override chases on the fly
– Use in conjunction with the ELP-DMX20 or the ELD-DMX20
– Polarity switch to accommodate different types of cable requirements
– Power input: DC 9V-12V, 220 mA min. power supply included
– Dimensions: 5.25″ x 19″ x 2.5″ (133 x 483 x 64 mm)
19 in. rack mount – 3 rack spaces
– Weight: 5 lbs (2.3 kgs)
– Voltage: 120V/220V
