Specifications:

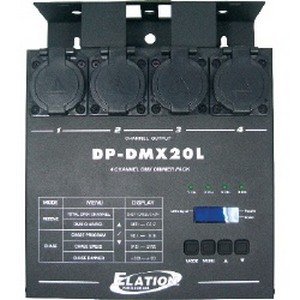

– 4 channel DMX Dimmer Pack
– now with new funktion to preset a chanel to dimming or switching only !
– Use as dimmer pack or switching pack
– Digital display- used to set starting DMX address channels and set all other menu options
– Selectable 1, 2, or 4 channel operation
– Adjustable master dim level.
– one grounded SCHUKO output per channel
– 3 pin XLR DMX Input & Output
– Four LEDs display channel activity
– External channel fuses for quick and easy replacement
– Sleek reversible mounting panel on the rear
– Zero crossing circuitry for protection of transformer loads when switching
– 16 built in Chases when in Chase mode with adjustable speed setting
– Use in conjunction with Elation; any DMX Operator, Scenesetter or other standard DMX Controller
– Reversible mounting brackets.
– Power Input: 230V/50Hz
– Maximum Load: 10A per channel / 16A total
– Dimensions: 260 x 210 x 76 mm
– Weight: 2,7 kg
