SPECIFICATIONS

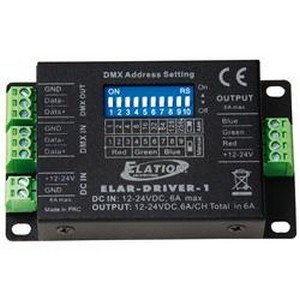

– Universal, single channel, LED driver
– 10 position dipswitch for Stand Alone presets and DMX address
– USITT DMX512 (1990) compatible
– DMX and Stand Alone operation modes
– Power Output: Dual terminal type, 12- 24VDC outputs, 6 Amps Max.
– DMX Output Operation Modes: One DMX channel
– Power Input: 12- 24VDC, 6 Amps Max.
– DMX Input: 3-Pin terminal type connector
– DMX Output: 3- Pin terminal type connector
– Dimensions: 2.64? x 1 .57 ? x .59? (67mm x 40mm x 15mm)
– Weight: 1 lbs. (150g)
– Operation Temperature: -10 degC to +50 degC
– Storage Temperature: – 20 degC to +70 degC
– CE Certified
