Features
. 18 x 5W Quad RGBA LEDs
. New Quad Color Technology
. Digital LCD Display
. High Tech Case Design
. Smooth Dimming Control
. Universal Input Voltage
. Power Con In/Out
. Superior color mixing
. Gel Frame Included
Features
. 18 x 5W Quad RGBA LEDs
. New Quad (4 in 1 LED) Color Technology
. Perfect RGB + Amber color mixing
. High Tech Case Design, Digital LCD Display
. Smooth Dimming Control
. Universal Input Voltage
. Power Con In/Out
. Superior color mixing
. Gel Frame Included
Shutter/Dimmer
. Strobe effect (1-18 flashes per second)
. Dimmer: Master Dimmer (7 ch mode)
Light Source
. 497 Lux / 46 FC at 3m / 10 at full. Quad RGBA LEDs 18 x 5W LEDs
. Lamp Life: 50,000 hrs. life
Optical System
. 10 standard beam angle (use optional LSF filters for wider beam angles)
Control
. DMX controllable via 6 DMX modes: 1,2,4,5,7 & 8
. 4 Digit LCD display
. USITT DMX-512
. Stand-alone programs
. Master/Slave
. Flicker Free
Operation Parameters
. IP Rating: IP 20
. Rigging: Split yoke bracket: floor-stand or mount
Power Supply
. Electronic power supply
. Power Supply: AC100~240V 47~63HZ
. Power Consumption: 140W Max

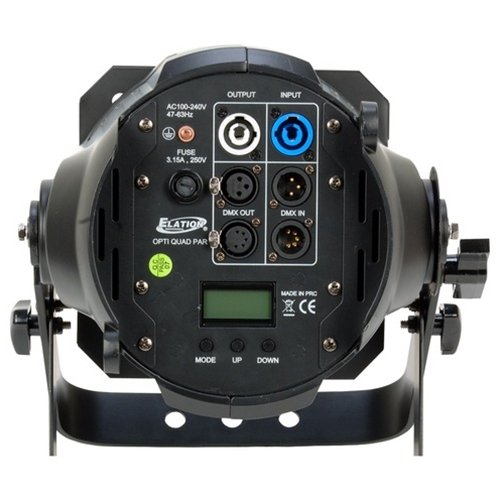

Connectors
. 3 pin and 5 pin XLR data input & output
. Plug Type: power-con in and out power link
Dimensions and Weight
. Dimensions: (LxWxH) 11 x 8.7 x 14 / 278.1 x 220.6 x 358mm
. Weight: 10.6 lbs / 4.8kg
Approvals
. CE Approved
. cETLus Approved
