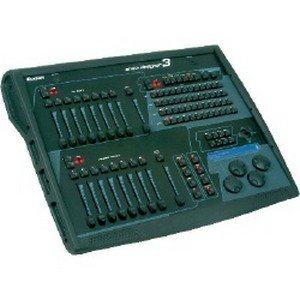

Take full control with the new Show Designer 3. This advanced lighting board is based on the successful and easy-to-use Elation Professional Show Designer 1 & 2. The Show Designer 3 expands on the existing features and adds several others. The approach of this controller is to try to simplify the programming process as much as possible while still offering a high level of control at an affordable cost. This full size universal DMX controller offers you both power and flexibility for all your programming applications. The Show Designer 3 makes programming simple and fast. A Compact Flash drive makes backing up programs, adding fixture profiles and software updates a snap. The latest fixture profiles can be downloaded off the Elation Professional website. Experience the power and take control with Show Designer 3 today!
SHOW DESIGNER 3 ADVANTAGES:
– Easy-to-use operation
– Large moving light fixture library available
– Software updates available at www.elationlighting.com
– Compact Flash drive on rear for memory back-up, loading fixture profiles and software updates
MAIN CONTROL FEATURES
– 1536 DMX Channels
– 3 DMX Universe, 3 & 5 Pin connectors on each output
– Control 48 moving light fixtures up to 32 channels each
– Control 128 Conventional dimmers
– Playback scenes using buttons or playback faders
– Effect generator to create chase effects
– Conventional dimmers can be included in scene memory or be independent.
– Factory ready color, gobo, focus & effect presets
– Large moving light fixture library available (same profiles as Show Designer 2)
– Scene preview with "Go" button
– Solo feature allows scenes to track through or play solo
– Scenes can be combined and recorded as new scenes
– Scenes, shows, chases and presets can be assigned to the playbacks.
– Playbacks can manually fade channels (LTP mode) or trigger timed fades while manually controlling dimmer levels (HTP mode)
FRONT PANEL
– 80 Character backlit display for easy programming
– 4 menu and control data wheels
– 48 Multi function Quick access buttons
– 100mm faders
– 8 dedicated playback faders with 32 pages
– 8 flex faders with page selection for moving light channels, conventional dimmers or additional playbacks.
– Pan/tilt joystick with coarse/fine control
– Grand master fader
– Flex master fader
– Go, stop and back buttons
– Blackout, audio and beat buttons
– 2 USB LITE connectors (for gooseneck lamps)
REAR PANEL CONNECTIONS
– 3 (3 Pin) DMX Outputs
– 3 (5 Pin) DMX Outputs
– Midi-In port
– CF-drive for memory back up, loading fixture profiles and software updates.(works with SANDISK 64MB, 128MB, 256MB)
– PS2 Keyboard input
– RS-232 Port, for PC interface
– RCA Audio input for Chases
– Voltage selection switch
CAPACITY
– 4752 programmable scenes
– 1152 programmable chases
– 1152 programmable shows
– 1152 programmable presets
– 48 fixture groups
– Fade times up to 90 minutes
– Run 16 chases simultaneously
– Run 17 shows simultaneously
MECHANICAL
– Dimensions: 711x584x178mm (28"x23"x7″)
– Weight: 17kg (37lbs)
– 230/110V AC power supply
OPTIONAL ACCESSORIES
– USB LITE (LED gooseneck lamp)
