THE AFFORDABLE ALTERNATIVE FOR PROFESSIONAL DMX LIGHTING CONTROL!

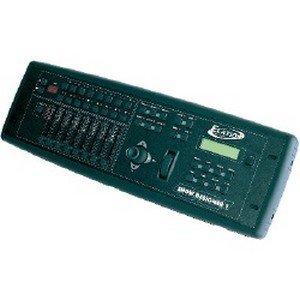

The Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier!
MAIN FEATURES
– PAN/TILT Joystick
– Controller comes "Tabletop Style"Includes removable rubber rails to fit standard 19-inch rack mount
– blue display with optimized contrast
– Control a wide variety of DMX intelligent lighting fixtures
– Large library of fixture settings for many different brands of lighting equipment
– Control up to 512 channels (USITT DMX-512 compatible)
– Control up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller fixtures
– Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
– Fixtures and memories are quickly selectable from an array of 16 switches
– Software updates can be easily downloaded from this web page.
– MIDI Capable
FRONT PANEL
– 8 faders allow direct control of channel settings for 32 channel fixtures using a bank switch
– Large rotary wheel for data entry
– Joy stick for pan and tilt control
– Pan and tilt can also be controlled using a standard PC trackball/keyboard (sold separately)
– 32 character backlit LCD display for easy programming
REAR PANEL
– 3 pin XLR connector for DMX-512 output
– Polarity switch to accommodate different types of cable requirements
– MIDI In & Out
– Audio input
– Power input: 230V DC 9V power supply included
– Dimensions: 483x133x121mm – Standard 19" rack mount, 3 rack spaces
– Weight: 6,67 kg
