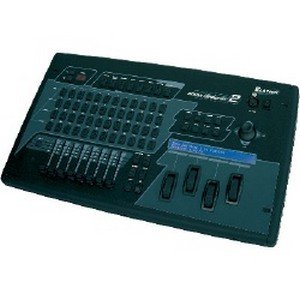

FRONT PANEL CONTROL OPTIONS
– 80 Character backlit LCD Display for easy programming
– 48 Multi function buttons
– JOYSTICK for Pan/Tilt Operation
– 4 Large Rotary wheels for Menu and Control
– 8 Faders x 4 Banks
– XLR Little Light Connector
– ON/OFF power switch
REAR PANEL CONTROL OPTIONS
– 2x(3Pin) DMX Outputs
– 2x(5Pin) DMX Outputs
– Midi-In port
– Midi-Out port
– RS-232 Port, for PC interface
– 2 x Polarity Switch per Output
– RCA Audio Input for Chases
TECHNICAL SPECS & DATA
– Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
– 1MB memory
– Battery Back up
– 19″ Rack mountable, 6 space
– Dimensions: 483 x 267 x 102 mm
– Weight: 4,5 kg
– Voltage: 230V via (Power Supply)9-12v DC/1200ma
