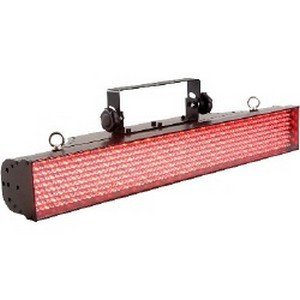

(TP-81) INTELLIGENT LED COLOR SYSTEM
The Trackpod-81 is a high output LED color mixing system. This unit provides an excellent color wash effect.
Its RGB additive color mixing technology can be used to create multiple hughes of colors to set moods and scenes It can be mounted from a ceiling, installed around a stage and suitable for most stage applications.
The Trackpod-81 is composed of 8 LED boards that contain 81 LEDs per board. You have the option to control one board individually or all boards at once.
Giving the user multiple options of creating many color combinations.
With its multiple channel options, you can take full control from Color mixing, Dimming, Strobing in every color and calling its built in programs.
Trackpod-81 Features
– USITT-DMX-512
– 6 DMX channels
– R,G,B Color Mixing
– Electronic Strobe
– 648 LEDs
Trackpod-81 System Specifications
– Power Supply: AC100V / AV120V / AC230V / AV240V, 50-60Hz
– Power Consumption: 115W
– Controls: DMX controller, built-in controller
– Dimensions: (811 x 176 x 160 mm) (31 x 7 x 6 in)
– Weight: 8.2Kg. / 18lbs.
– Fuse: 120VAC 250V / T2.0A; 230VAC 250V / T1.5A
– Fixture contains 648 LEDs
– 2400 Lux @ 1M
– 15 beam angle
System Includes
1 x Trackpod 81
2 x mounting brackets
Installation guide
