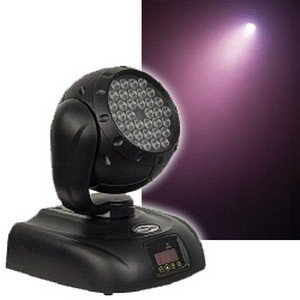

The Orbit One is the first LED moving head by Showtec. It is a powerful moving head which is equipped with 36 1W LED’s, offering an enormous light output. The RGB color mixing provides an unlimited selection of colours to the user. It has a precise and accurate 16 bit movement as well as auto-correction on pan and tilt movement.
Technische info:
- Power Supply 90-250V AC, 47-63Hz
- Power consumption: 70W
- LED/unit: 36x 1W LED (12x Red, 12x Green, 12x Blue)
- Beam Angle 50 degree
- 16 bit resolution
- 540 degree pan movement
- 270 degree tilt movement
- RGB color mixing
- Dimmer 0-100%
- Strobe 1-25Hz
- Dimensions: 350 x 290 x 300mm
- Max ambient temp. 40 degrees
- DMX-512 (12 channels)
- Master/Slave function
- Stand alone function
