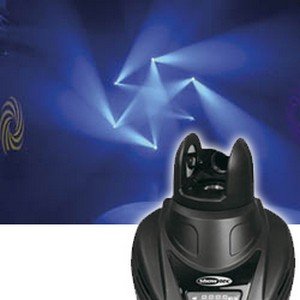

Pre-experience the future! Showtec brings you another revolutionary fixture. The Revolution-700 is an evolved combination of a moving head and a scanner with an extreme high light-output (MSD-700). It has a stylish and compact design, which will fit on every stage or in every interior. It has some unique features such as continuous rotating head (both Pan and Tilt function).The channel-settings and the features for both versions are the same.
Technical Information
- 10 dichroic colors plus one 3200K CTC color and white
- 6 rotating and indexable gobos
- 2 glass gobos
- Rotating prism
- DMX controlled focus
- High speed shutter (1-7 flashes per second)
- Smooth dimmer (0-100%)
- Digital addressing
- 360 degrees Pan movement
- 360 degrees Tilt movement
- 16 bit resolution
- Revolution 700: 800W
- Lamp: HTI 700W GY-9.5 (Osram: 80948)
- Dimensions(LxWxH): 430x460x400 mm
- Weight: 25 Kg
- DMX Channel Control
- Channels: 12 DMX Channels:
- CH1: Dimmer, shutter and flash
- CH2: 11 colors & corr. filter & color-rainbow
- CH3: 6 gobos & open
- CH4: Goborotation L&R + gobochange
- CH5: 3 Facet prism with rotation
- CH6: Focus adjustment
- CH7: Pan adjustment
- CH8: Tilt adjustment
- CH9: Pan rotation
- CH10: Tilt rotation
- CH11: Reset
- CH12: Lamp
