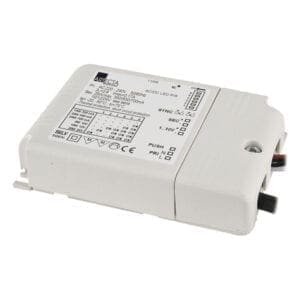

Deze universele dimbare LED driver van Artecta is een LED driver die zowel een vaste spanning (10,5 Volt, 12,5 Volt of 24,5 Volt) als een vaste stroom (350 milliampère, 500 milliampère, 550 milliampère, 700 milliampère of 750 milliampère) kan leveren. Het grootste deel van alle laagspanning LED spotjes kun je met behulp van deze LED driver op het 230 Volt lichtnet aansluiten.
Wil je het LED spotje of de LED spotjes – die je aan gaat sluiten op deze LED driver – kunnen dimmen? Als het betreffende LED spotje of de betreffende LED spotjes dimbaar zijn, dan kan dat met behulp van deze LED driver! Op deze LED driver kun je namelijk een externe dimmer, een externe potmeter of een externe pulse-switch aansluiten.
Wil je meer LED spotjes kunnen dimmen dan dat je er op deze universele dimbare LED driver aangesloten kunnen worden? Dan moet je één of meerdere Artecta LED Data Repeaters gebruiken. Een LED Data Repeater is een LED driver die de instellingen van deze LED driver overneemt. Dim je de LED spotjes die op deze universele LED aangesloten zitten, dan worden ook de LED spotjes aangesloten op de LED Data Repeater gedimd. Je kunt een LED Data Repeater op deze universele LED driver aansluiten met behulp van een Sync kabel. Ook die is los verkrijgbaar.
Specificaties:
- LED driver
- Type: Jolly
- Mogelijkheid voor het aansluiten van een externe dimmer, potmeter of pulse-switch (voor het dimmen)
- 2 werkmodi: constante stroom of constante spanning (schakelbaar d.m.v. een dipswitch)
- Uitgangsstroom (bij de constante stroom werkmodus): 350 mA / 500 mA / 550 mA / 700 mA / 750 mA (schakelbaar d.m.v. dipswitches)
- Uitgangsspanning (bij de constante spanning werkmodus): 10,5 V / 12,5 V / 24,5 V (schakelbaar d.m.v. dipswitches)
- Max. te leveren vermogen bij een uitgangsstroom van 350 mA (constante stroom werkmodus): 15 Watt
- Max. te leveren vermogen bij een uitgangsstroom van 500 mA (constante stroom werkmodus): 22 Watt
- Max. te leveren vermogen bij een uitgangsstroom van 550 mA (constante stroom werkmodus): 22 Watt
- Max. te leveren vermogen bij een uitgangsstroom van 700 mA (constante stroom werkmodus): 25 Watt
- Max. te leveren vermogen bij een uitgangsstroom van 750 mA (constante stroom werkmodus): 25 Watt
- Max. te leveren vermogen bij een uitgangsspanning van 10,5 V (constante spanning werkmodus): 9 Watt
- Max. te leveren vermogen bij een uitgangsspanning van 12,5 V (constante spanning werkmodus): 10 Watt
- Max. te leveren vermogen bij een uitgangsspanning van 24,5 V (constante spanning werkmodus): 20 Watt
- Arbeidsfactor (power factor): 0,95
- IP-classificatie: IP20 (klasse II)
- Werktemperatuur: -20°C – +50°C
- Bescherming tegen oververhitting, kortsluiting en overbelasting

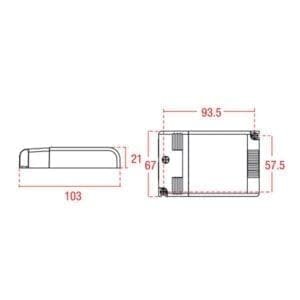

- Afmetingen: 103 x 67 x 21 mm (L x B x H)
- Gewicht: 0,11 kg
- Verlengkabel 1,5 meter is los verkrijgbaar (artikelnummer HLA9920515)
- Verlengkabel 3 meter is los verkrijgbaar (artikelnummer HLA9920530)
- 3-weg splitter is los verkrijgbaar (artikelnummer HLA9920500)
- 6-weg splitter is los verkrijgbaar (artikelnummer HLA9920501)
- Sync kabel 50 cm is los verkrijgbaar (artikelnummer HLA9950027)
- Sync kabel 1,5 meter is los verkrijgbaar (artikelnummer HLA9950017)
- Sync kabel 4 meter is los verkrijgbaar (artikelnummer HLA9950028)
- LED Data Repeater RGB is los verkrijgbaar (artikelnummer HLA9915010)
Klik hier om het specificatieblad van dit product te downloaden.
Specificaties onder voorbehoud.
