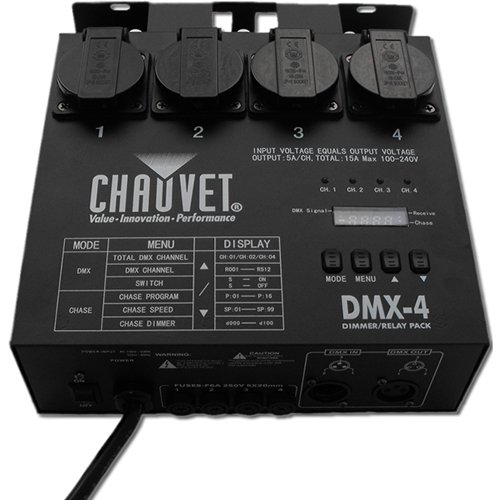

The DMX-4 Dimmer/Relay pack is a 4-channel unit featuring two Edison plugs per channel, with each channel independently addressable. In addition, each separate channel can be configured as either dimmer or relay. The DMX-4 features 16 user-selectable chase patterns, a variable electronic dimmer and LED display. Designed for truss mounted applications with easy access to fuse replacement.
Specificaties:
– 4-channel DMX-512 dimmer / switch pack
– Each channel can be set to any DMX address
– Variable electronic dimmer (0-100%)
– Each channel can be set as either dimmer or relay
– 16 user-selectable chase patterns
– Adjustable speed control and dimming with or without DMX
– 1 shuko plugs per channel
– Input voltage equals output voltage
– Output: 5A per channel, 15A max
– AC Power: Autoswitching 100V-240V 50/60Hz
– Weight: 2.2kgs
– Size: 210mm x 194mm x 70mm
