Pixel Pitch 3.9mm
Full Black LED
Rear service
140° Viewing angle
DMT extended their FI Install series with several Indoor and Outdoor fixed installation models. There are several pixel pitches available and therefore very suitable for various screen projects.
Due to the smart cabinet dimensions (500x750mm and 500x10000mm) the screen size can be easily adapted to meet the requirements of fixed installation projects. Screen installation is preferably done with the optional available mounting bracket or alignment plate.

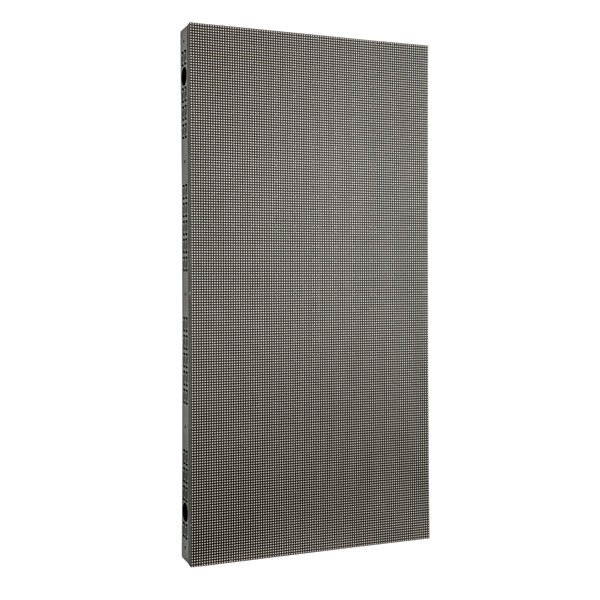

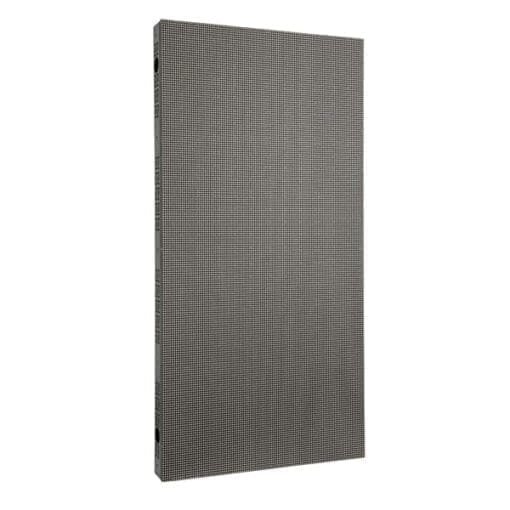

The DMT FI-3.9 outdoor with a 3.9mm pixel pitch and brightness of 5000 Nits is the ideal screen for outdoor advertisement or signage solutions. It is very well equipped for permanent outdoor use and preferably as a fixed installation screen. The LED modules within the screens are hot swappable and serviceable from the back of the screen. Due to the high brightness, 3.9mm pixel pitch, Full Black led, 140° viewing angle and NovaStar processing the ideal solution for almost any outdoor screen project.
Lichtbron type: LED
Lichtbron merk: Nationstar Gold Wire
Helderheid: 5000 nits
Pixel afstand horizontaal: 3.9 mm
Pixel afstand verticaal: 3.9 mm
Kast resolutie breedte: 128 px
Kast resolutie hoogte: 256 px
Module resolutie breedte: 64 px
Module resolutie hoogte: 64 px
Kijkhoek horizontaal: 140 °
Kijkhoek verticaal: 140 °
Minimale kijkafstand: 4 m
Contrast ratio: 6500:1
Kast ratio: 1:2
Transparantie: 0 %
Besturingssysteem: Novastar
Receiver kaart: MRV 220-2
Refresh rate scherm: 1920 Hz
Voeding: 100-240VAC 50-60Hz
Vermogensverbruik: 355 W
Gemiddeld vermogensverbruik: 142 W
Vermogensconnector ingang: ProPower True 1 In
Vermogensconnector uitgang: ProPower True 1 Out
Data ingangsconnector: ProCat
Data uitgangsconnector: ProCat
Kast hoogte: 1000 mm
Module hoogte: 250 mm
Kast breedte: 500 mm
Module breedte: 250 mm
Kast diepte: 71 mm
Gewicht: 14.9 kg
Gekromde hoeken: N/A °
IP waarde: IP54 rear / IP65 Front
Behuizing: Metal
Koeling: Convection
Vaste montage optie: M6
Ophanging horizontaal max.: N/A Panels
Ophanging verticaal max.: N/A Panels
Vergrendelingssysteem: N/A
Maximale omgevingstemperatuur: 50 °C
Minimale omgevingstemperatuur: -20 °C
Bedrijfsvochtigheid: 10-90 %RH
Vergelijkingsstandaard: CE / EMC / FCC / RoHS
Meegleverde kabels: Horizontal Power link cable / Horizontal Signal link cable
Led type: Black Face
