Pixel Pitch 4.8mm
Black frame LED
Front & Rear service
140° Viewing angle

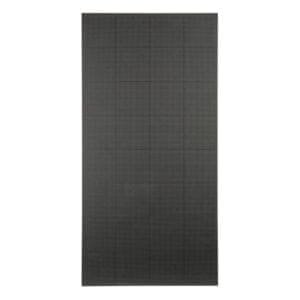

DMT extended their FI Install series with several Indoor and Outdoor fixed installation models. There are several pixel pitches available and therefore very suitable for various screen projects.
Due to the smart cabinet dimensions (500x750mm and 500x10000mm) the screen size can be easily adapted to meet the requirements of fixed installation projects. Screen installation is preferably done with the optional available mounting bracket or alignment plate.
The FI-4.8 Indoor offers a 4.8mm pixel pitch, if you combine this with the 140° viewing angle, black frame LED and Novastar processing you will get the best possible image quality. Furthermore the cabinet is fully front and rear service, therefore easy to install or integrate in almost any project.
With the optional available front service tool, users can easily swap led modules and PSU’s from the front of the screen. Due to the screen thickness of only 71mm very suitable for various applications, like digital signage and retail applications where short viewing distances are required.
Lichtbron type: LED
Lichtbron merk: Nationstar Gold Wire
Helderheid: 1000 nits
Pixel afstand horizontaal: 4.8 mm
Pixel afstand verticaal: 4.8 mm
Kast resolutie breedte: 104 px
Kast resolutie hoogte: 208 px
Module resolutie breedte: 52 px
Module resolutie hoogte: 52 px
Kijkhoek horizontaal: 140 °
Kijkhoek verticaal: 140 °
Minimale kijkafstand: 5 m
Contrast ratio: 6500:1
Kast ratio: 1:2
Transparantie: 0 %
Besturingssysteem: Novastar
Receiver kaart: MRV 220-2
Refresh rate scherm: 1920 Hz
Voeding: 100-240VAC 50-60Hz
Vermogensverbruik: 195 W
Gemiddeld vermogensverbruik: 78 W
Vermogensconnector ingang: ProPower Blue
Vermogensconnector uitgang: ProPower Grey
Data ingangsconnector: ProCat
Data uitgangsconnector: ProCat
Kast hoogte: 1000 mm
Module hoogte: 250 mm
Kast breedte: 500 mm
Module breedte: 250 mm
Kast diepte: 71 mm
Gewicht: 14.3 kg
Gekromde hoeken: N/A °
IP waarde: IP20(indoor use only)
Behuizing: Metal
Koeling: Convection
Vaste montage optie: M6
Ophanging horizontaal max.: N/A Panels
Ophanging verticaal max.: N/A Panels
Vergrendelingssysteem: N/A
Maximale omgevingstemperatuur: 50 °C
Minimale omgevingstemperatuur: -20 °C
Bedrijfsvochtigheid: 10-90 %RH
Vergelijkingsstandaard: CE / EMC / FCC / RoHS
Meegleverde kabels: Horizontal Power link cable / Horizontal Signal link cable
Led type: Black Frame
