4.6mm Pixel Pitch
IP65
Front & Rear Service
>5000 Nits
Novastar Control System
Lightweight
DMT Premiere Series-G2 is the successor of the popular Premiere Series. All models are built on one platform all offering the same size and design features and therefore ensuring maximum user flexibility. With a pixel pitch from 5.9 down to 2.9mm the Premiere Series-G2 offer the right picture for your event. All cabinets have a lightweight frame design and they are equipped with Maxmag magnets on top ensuring easy one-hand assembly. The Premiere Series-G2 can be rigged easily by its dedicated rigging bars. LED Modules and control module are easy to swap from the front or rear end of the screen. For front service maintenance the optional available front service tool is required. All connections are done by genuine Neutrik Ethercon and Powercon True1 TOP connectors. The Novastar control system guarantees an easy to operate and reliable control system. Public Viewing, exhibitions, events or even permanent outdoor installations. The DMT Premiere Series-G2 offer you the right tools for the job.

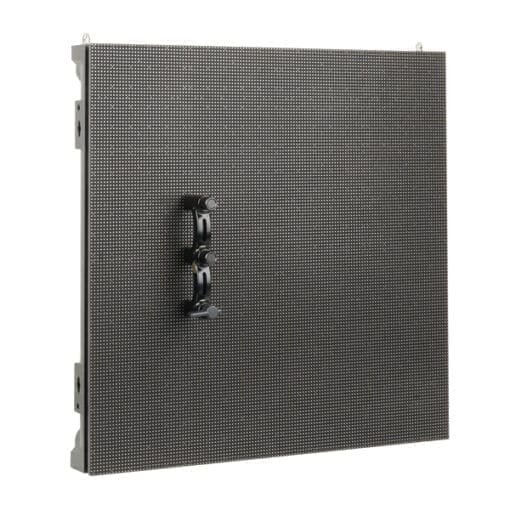

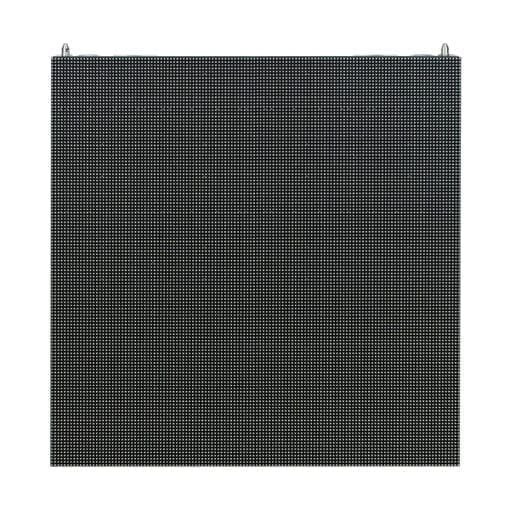

The DMT PS4.6-G2 is a high performance rental panel for indoor and permanent outdoor applications. Due to the 4.6mm pixel pitch the recommended viewing distance to the screen is approximately 5mtr. therefore very well suited for medium stages and corporate events.
The cabinets are slim and lightweight and enable you to set up and dismantle video screens easily. Due to the 500x500mm cabinet dimension all kinds of screen setups can be achieved easily.
Pixel afstand horizontaal: 4.63 mm
Pixel afstand verticaal: 4.63 mm
Paneel Resolutie horizontaal: 108 px
Paneel Resolutie verticaal: 108 px
Kijkhoek horizontaal: 160 °
Kijkhoek verticaal: 135 °
Minimale kijkafstand: 5 m
Contrast ratio: 11000:1
Paneel Ratio: 1:1
Transparantie: 0 %
Led type: Black Frame
LED Fabrikant: Nationstar Gold Wire
Helderheid: 5000 nits
Besturingssysteem: Novastar
Refresh rate scherm: 3840 Hz
Voeding: 100-240VAC 50-60Hz
Vermogensverbruik: 130 W
Gemiddeld vermogensverbruik: 50 W
Vermogensconnector ingang: PowerCON True 1 TOP In
Vermogensconnector uitgang: PowerCON True 1 TOP Out
Data ingangsconnector: etherCON
Data uitgangsconnector: etherCON
Paneel breedte: 500 mm
Paneel hoogte: 500 mm
Kast diepte: 68 mm
Gewicht: 8.05 kg
IP waarde: IP65
Behuizing: Magnesium Die-cast
Koeling: Convection
Vaste montage optie: M10
Ophanging horizontaal max.: 18 Panels
Ophanging verticaal max.: 18 Panels
Vergrendelingssysteem: Fast Lock System
Veiligheidsstandaard: CE / EMC / RoHS
Meegeleverde kabels: Horizontal Power link cable / Horizontal Signal link cable
