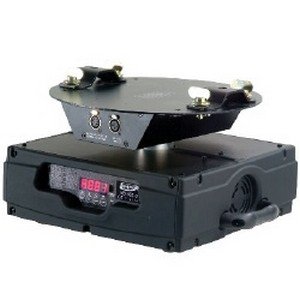

The DMX-controlled "Promo Base 360" and "Promo Base DMXAC" are designed to rotate banners, flags or lighting fixtures on exhibitions, in theatres or in clubs.
They are great for retail environments and other applications where advertising needs to be highlighted. The "Promo 360" can turn continuously 360 in micro steps (16bit resolution) and the "Promo DMXAC" turns for 540 max and has build in DMX and AC power supply. With the last you are able to rotate any DMX item such as Lasers, LED Wash lights, Strobes etc.
Rotation is possible in both directions. Speed is adjustable by DMX.
Specifications:
– 540 PAN rotating base
– DMX (3 + 5 pin) and AC power outlet on rotating base
– 16 bit movement resolution
– DMX controlled (USITT DMX-512)
– 4 DMX Channels
– Operation temperature: -10C to +40C
– Auto correction
– Max. current for top base: 16A
– Max speed: XX U/min
– Master/Slave function
– Build in Stand-Alone programs
– Very silent cooling system
– Max load: 10kg
– Power supply: 230V/50Hz
– Power draw: 45W
– Weight: 15kg
