SPECIFICATIONS

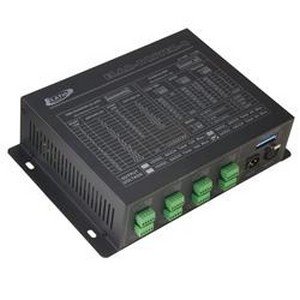

– Universal 12V LED Driver with Built-In Power Supply
– 12 position dipswitch for DMX addressing and function set up
– USITT DMX512 (1990) compatible
– DMX and Stand Alone operation modes
– 0- 100% Stand Alone Fade Time setting
– 0.1S ? 30S Stand Alone Chase Speed setting
– 7 built in programs
– Output:8x terminal output RGBW, 12VDC, 6A/CH, Total 12A Max.
– All Outputs Individually Controllable by DMX (32 DMX channels)
– DMX Output Operation Modes:
Pure White (Intensity) (One DMX Channel)
Color with white saturation (Two DMX Channels)
* RGB (Three DMX Channels)
* RGBW (Four DMX Channels)
– Power Input (selectable) 110- 120VAC (3.2A) / 220- 240VAC (1.6A) 50/60Hz
– Power Failure Memory
– DMX Input: 3-Pin XLR male connector
– DMX Output: 3- Pin XLR female connector
– Dimensions: 286mm x 191mm x 74mm
– Weight: 3kg
– Operation Temperature: -10 degC to +50 degC
– Storage Temperature: – 20 degC to +70 degC
