The EVLED VSC full-color synchronous video control system is composed of a rackmount 19 Video controller or PCI Card and EVLED Playback/Setup media software running on all standard PC windows operating systems. The Signal gets captured using any DVI input, e.g. from PC graphics card output or any applicable DVI A or D signal. The video controller has two signal output ports. Each port can connect a set of EVLED panels in any configuration. A standard Ethernet cable with waterproof EVLED connectors transmits 1280 X 1024 (EVLED VSC) or 2048 X 640 (EVLED VSCII) pixels within a max. distance of 100m. The EVLED VSC software allows configuration, sizing, mapping, media playback and readout of the panel hardware sensors and values.
EVLED Video System Controller

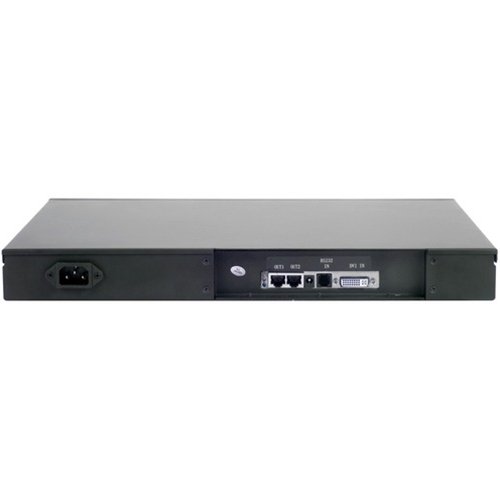

– Signal Output to Screens 2x LAN, CAT5 / waterproof connector
– Signal Input: DVI-A/D with 640×480 to 1280×1024 input resolution
– Controller Command Communication from PC – USB / RS232
– Maximum Resolution – 1280 x 1024 pixels / 2048 X 640 (VSCII)
– Dual LAN outputs for set up of 2 separate or combined screens
– Includes VSC software for pixel mapping set up and media player
– High Frequency Refresh Rate – Selectable between 100Hz – 3,000Hz
– Grey Scale level – 0 – 66536 levels

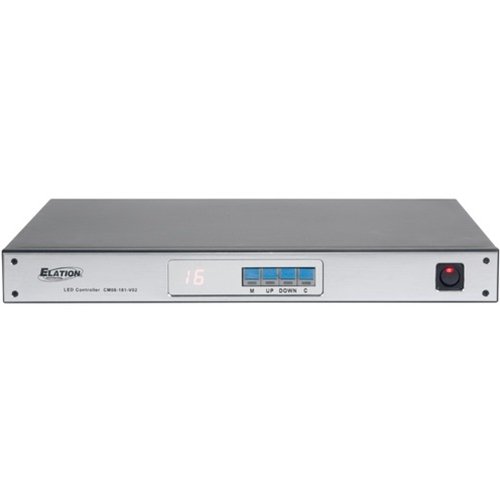

– Power switch and Up/Down buttons to control 16 preset intensity levels
– AC Input 100-240V 50/60 Hz
– Table stand or rack mounted with rack ears
– Pixel Correction – Single, 2×2, 4×4 and 8×8, Max. 6144 pixels, 256 adjustable RGB levels
– Size – 423 x 330 x 46 mm (LxWxH)
– Weight – 5.3kg
Code 1239100001 VSC: 19/Tabletop
max. 1280×1024 pixel
Code 1239100024 VSCII: 19/Tabletop
max. 2048×640 pixel
Code 1239100025 VSCSC: PCI Card
max. 1280×1024 pixel
Code 1239100026 VSCSCII: PCI Card
max. 1280×1024 pixel
