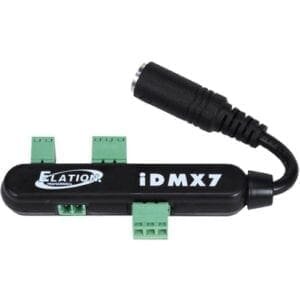

The iDMX7 is a simple DMX controller/playback device that can be controlled via the included infrared remote. It features four work modes which include Auto, Manual, DMX Data Record and DMX Playback Modes. The internal EEPROM is used to memorize current functions and parameters to ensure proper operation. It also includes BB technology so programs can seamlessly loop. The iDMX7s memory can store up to 7 minutes of 512 channels, continually changing channel values. This product is ideal for any application where a simple, discreet, low cost DMX control solution is required.
– Small and Compact DMX Recorder
– Full Infrared Remote Control
– Records and Plays Back 512 DMX Channels

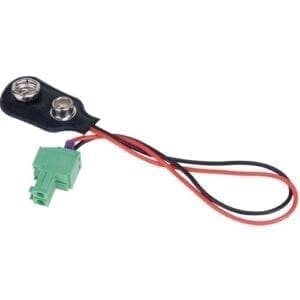

– Can be Powered by Battery or PSU.
– Can be used as simple RGB Controller
– Ultra Compact: Hides Anywhere
– Seamless Loop Playbacks
Specifications
– Control of up to 512 DMX channels
– Maximum record speed is 25 frames per second (512 channels)
– 7 minutes of, 512 channels, continuos record/playback time
– Incorporates BB technology that ensures seamless loop playback
– IR sensor and remote range: 10 meters (32.8 feet)
– Polycarbonage housing
– 9VDC, 200mA power supply (included)
– 2 pin, DC Input/Output terminal sockets
– 3 pin, DMX Input/Output terminal sockets
– 0 degC to + 55 degC operation temperature
– -20 degC to + 70 degC storage temperature
– Dimensions: 81.7(L) x 15.1(W) x 13(H)mm
– Weight: 150g
