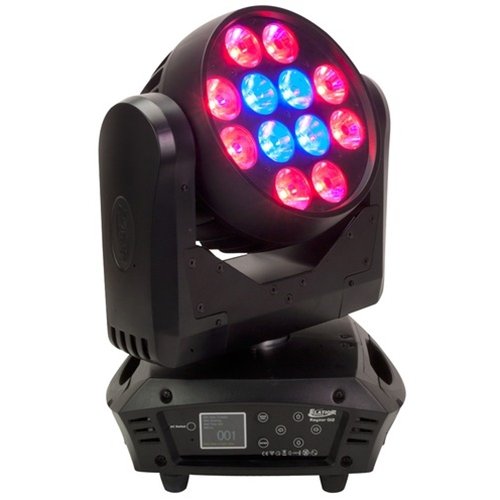

The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7 to 14 field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.
FEATURES
Pan: 540 / 630/ 540 – 90 Offset
Tilt: 270 / 240
High Speed Adjustable 16-Bit Resolution Movement
6 Zone Chase Effects
8 Auto Program Chase Macros
6 Button Touch Control Panel
Omega Bracket Mounting (2x 107mm)
Flicker Free Operation for TV and Film
Full Color 180 Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Master/Slave Function
Software Upload via Optional External DMX Accessary
SOURCE
(12) 15W RGBW QUAD COLOR LED
100,000 Hours Average Life
PHOTOMETRICS
Max 5,840 LUX @5M
7 to 14 Field Angle Range
EFFECTS
Color Mixing
Rainbow Effect
Dimming: 0% – 100% + Blackout for All Four Colors
Strobe: 1 – 18 Flashes Per Second
Pulse Effect
CONTROL / CONNECTIONS
3 DMX Channel Modes (15/17/37)
5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 11.7 (295.5mm)
Width: 8.5 (214mm)
Vertical Height: 15.7 (397mm)
Weight: 22 lbs. (10kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
-10C/14F to 45C/113F
APPROVALS / RATINGS
CE Pending
cETLus Pending
IP20 Rated
OPTIONAL ACCESSORIES
Snoot Lens Cover
Diffusion Filter Holder
