SPECIFICATIONS:

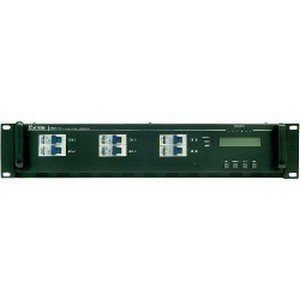

– 6 channel digital dimmer pack. USITT DMX-512 (3-pin) input
– 2U 19″ rack mount
– High speed micro processor
– Real time zero crossing detection
– Backlit digital display
– High quality chokes for minimal noise
– Individual or block channel patching
– Minimum channel output setting from 0 to 30%
– Maximum channel output setting from 70 to 100%
– Channel curve setting option includes Linear, Square, Non Dim and S-Curve – individually assignable for each channel
– DMX fail backup feature (contains 12 internal chase programs, last scene hold and Analog – control options )
– Power failure memory
– Standard Terminal type output panel
– Optional output panels: Edison, Socapex, Stage Pin or Power Con
-DMX Output
– Analog input
– Fan cooled
– 6 x 20A UL approved MCB breakers
– 20A/CH. Total 120A single phase connection
– 20A/CH. Total 40A per phase- three phase connection
– Dimensions: 432 X 483 X 89 mm
– Weight: 9,5 kg
