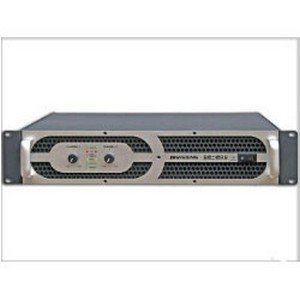

Professional 2-channel amplifier with built-in active crossover.
Power stereo 4O (1kHz, THD+N<0,1%) = 2x 600Wrms
Power bridge 😯 (1kHz, THD+N<0,1%) = 1200Wrms
Very compact housing, only 2U (88mm) high
Oversized power supply guarantees a powerful bass reproduction
Built-in active crossovers: no need for separate crossover units to setup an active system.
Each channel equipped with a 24dB/octave crossover: adjustable crossover point (90~250Hz) and 3 operation modes: HPF (high pass filter) + LPF (low pass filter) + OFF (no filter)
Two amplifier modes: stereo and bridge
Peak limiters can be switched on/off
Soft start power supply
Very efficient cooling
DC fault protection
High temperature protection
Overload and short circuit protections
Balanced inputs with combo connectors (jack + XLR)
XLR-outputs: daisy chaining of several amplifiers
3 Speakon outputs: left + right channels + bridge
3 models with different output power available
Power stereo 😯 (1kHz, THD+N<0,1%): 2x 400Wrms
Power stereo 4O (1kHz, THD+N<0,1%): 2x 600Wrms
Power bridge 😯 (1kHz, THD+N<0,1%): 1200Wrms
Freq. Resp. (+/-0.5dB): 20-20.000Hz
Built-in active crossover: 24dB/oct. crossover 90~250Hz
Input sensitivity: 770mV
Input impedance: 20kO Balanced, 10kO un-Balanced
S/R ratio: >90dB
Damping factor: 8O/1kHz > 600
Cooling: Dual speed fan cooling
Input Connections: Balanced XLR, unbalanced Jack (COMBO)
Output Connections: 3 Speakon for Stereo & Bridge Output
Power Supply: 230Vac / 50Hz
Dimensions(mm): 482 x 473 x 88
Weigth (kg): 19
THD: < 0.1%
Crosstalk @ Rated Output 8O/1kHz: < 75dB
Protection:Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse Thermal Cut
