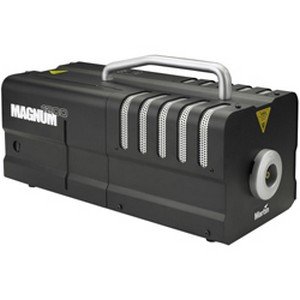

The Magnum 1200 delivers a heavy punch of fog. It’s built tough to meet the rugged demands of 24/7 nightlife.
Features
- Continuous output
- 290 m³/min fog output
- 850 W heat exchanger
- 8 min heat-up time
- Optional flying kit
- 2.3 liter fluid capacity
- Different fluid options for different applications
- optional DMX interface module
- Internal remote control storage
- Timer and output level remote control
Physical Length: 450 mm (17.7 in.) Width: 205 mm (8.1 in.) Height: 244 mm (9.6 in.) Dry weight: 10 kg (22.0 lbs.)
Performance Max. fog output (approx.): 290 m3 per minute Max. operating time at full output (approx.): 90 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 8 minutes
Control and Programming Control options: Remote control (supplied), DMX with optional DMX interface module Remote control features: Instant or timer-controlled variable output
Construction Housing: Steel & aluminum Heat exchanger: 850 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.3 l Fluid consumption at peak output: 50 ml per minute
Installation Orientation: Floor or flying kit
Connections Remote control: RJ-45 DMX (with optional DMX interface): 3-pin locking XLR Power cable entry: 3-pin IEC
Electrical AC power: 220-240 V nominal, 50 Hz
