- Contact resistance: = 3 mO
- Dielectric strength: 4 kVdc
- Insulation resistance: > 0.1 GO (after damp heat test IEC 68-2-30)
- Rated current per contact: 30 A RMS continuous
- Rated current per contact: 40 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V (Insulation)
- Attention: speakON is NOT to be used as an AC mains connector!
- Cable O.D.: 6 – 10 mm
- Lifetime: > 5000 mating cycles
- Wire size: 4 mm
- Wire size: 12 AWG
- Wiring: screw type terminals or soldering
- Locking device: Quick Lock (ring)
- Approvals: UL,CSA
- Flammability: UL 94 V-0
- Savety requirements: EN/IEC 61984
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 C to +80 C

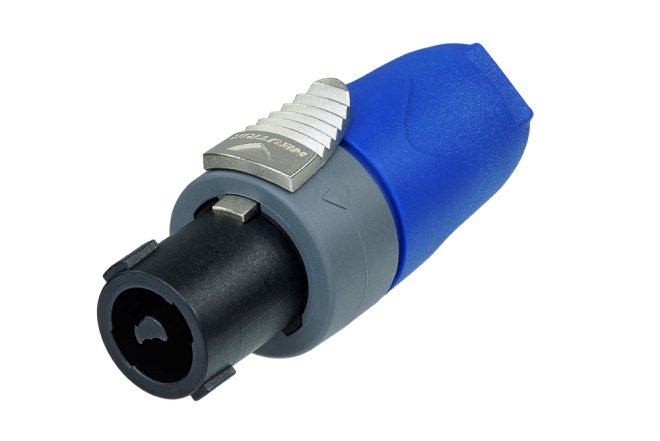

Neutrik speakon, kabeldeel 2-polig
Merk: Neutrik
Neutrik speakon, kabeldeel 2-polig
4,25
Niet leverbaar
Heb je een vraag over dit product?
