All-in-One 4k controller with scaler and Video Switchingfunctions
Master VI smart platform for direct control
DP1.2 / HDMI 2.0 / HDMI 1.3 / 12G SDI
8/10/12-bit Colour Depth
16x Gigabit Ethernet output port
4x 10G SFP fiber port
GENLOCK

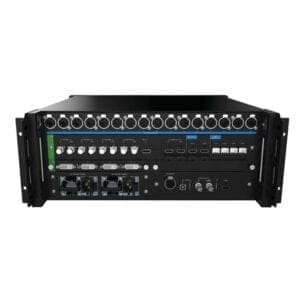

The NovaPro UHD is a new generation all-in-one 4K controller which combines excellent video processing, scaling and sendingcard functions into one housing. It can handle a variety of video input signals like 12G-SDI, HDMI 2.0, 1.3 and DP1.2.
It can support ultra-high resolutions up to 4K x 2K(@60Hz) and 8K x1K(@60Hz)
NovaPro UHD is equipped with the built-in Master VI smart platform which supports layer creation, property settings and screen configuration by mouse, keyboard and monitor directly on the controller itself.
NovaPro UHD also supports low latency and HDR10 (only with A8s/A10s Receiving card) to greatly enhance the display image quality.
The NovaPro UHD is also equipped with Neutrik Ethernet ports and 10G Optical fiber ports.
Due to professional interfaces, excellent image quality and flexible controls the NovaPro UHD is well suited for high-end rental projects, exhibition sites, as well as fine pitch LED displays.
Voeding: 100-240V VAC
Stroomverbruik: 180 W
Gewicht: 21 kg
Afmetingen LxBxH: 482,6 x 177 x 497,5 mm
Besturingsstand: USB, Ethernet
Omgevingstemp.: -10 ~ +60 °C
Input SDI 12G: 4
Input DP 1.2: 1
Input HDMI 2.0: 1
Input HDMI 1.3: 4
Output Gigabit Ethernet: 16
Output 10G SFP optic: 4
Output HDMI 1.3 (MVR): 1
Output HDMI 1.3 (AUX): 1
Output HDMI 2.0 (Loop): 1
GENLOCK: Input / Loop
Output HDMI (for control): 1
