The new S.T.I.C.K.
In 2000, the sector was revolutionised by S.I.U.D.I. We had just designed the first USB- DMX interface. Today,9 years later, we are happy to announce the release of our S.T.I.C.K. a unique concept perfectly adapted to the future requirements of the market of architectural lighting. Firstly introduced at Light&Building (Frankfurt, Germany)trade show in April 2008, then at Inlight show (Lyon, France) and LightFair (Las Vegas, USA), we can already announce that our new S.T.I.C.K product gets a great reception from the industry.

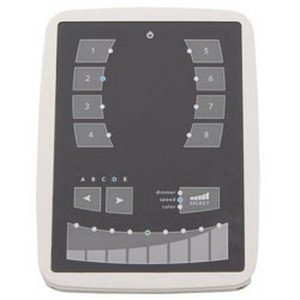

The Sunlite Touch-sensitive Intelligent Control Keypad which is commonly called S.T.I.C.K. has the best assets to Stick to forthcoming needs and to become a new worldwide standard.This complete stand alone wall-mounted DMX controller is the perfect answer to interior lighting control expectations. Along with a state of the art design, the products comes with amazing features (1024 DMX channels, touch sensitive panel, clock/calendar, remote control…).
STICK: 4 official versions
direct access to the main colors
Since we keep improving the STICK firmware, the sensitive fader allows now a direct access to the main colors (red, green, blue, cyan, magenta, yellow, white and black). We have decided to offer a second design with a colorized fader and the STICK logo in the center. Along with the choice between black and white for the frame, we now offer 4 differents versions for your next orders.
Reminder: For 10 units orders, you can receive your STICK controllers with a customized front panelmade withthe STICK DESIGN CENTER.
The STICK keeps moving!
Remote control, RS232, Fade, Locking, DMX Capture
The S.T.I.C.K. keeps moving forward!
Here is a list of the latest, immediately available features:
– assign IR remote keys to scenestriggering and pause the S.T.I.C.K.
– set the time and date directly with the sensitive keypad
– fade between scenes and change the fade timewith the sensitive keypad
– trigger scenes with RS232
– lock or unlock certain functions of the S.T.I.C.K. according to each installation (e.g. remove the dimmer, the pause function, etc.)
-within the next weeks, it will be possible to capture shows in real-time from any DMX512 controller to a SDcard using our new SLESA-U7 interface.
A new tool allowingto design the S.T.I.C.K background picture is now available.With just a fewclicks, you could change theshape of all buttons: scenes, pages, power, select, fader as well ascustomizing colors,background pictureand logos…
A new tool allowingto design the S.T.I.C.K background picture is now available.With just a fewclicks, you could change theshape of all buttons: scenes, pages, power, select, fader as well ascustomizing colors,background pictureand logos…
At the end, there will be over 50 millions design possibilities. You can save your designs and make them available for other users.
Once the JPG 300 dpiimage has been downloaded and printedyou caninstall itunder the STICK glass panel.
STICK DESIGN CENTER:
– FREE if you design, print and install the image by yourself
The S.T.I.C.K. product is fully programmable using Sunlite Easy Stand Alone and ESA PROsoftware.
Technical specifications:
Flat wall mounted DMX controller, All-In-One technology
Ideal for LED, RGB and DMX lighting
State of the art design and technology
MINI-USB connection for software programming
Use without computer, stand alone mode
Touch sensitive control panel
512 DMX OUT channels
Unlimited memory via SDCARD
Integrated clock/calendar
RS232 serial and I/O ports
Universal infrared receiver
Internet Design Center for customization
Upcoming features (no extra cost)
1024 DMX OUT channels
Optional remote control
ETHERNET connection
Built-in microphone for sound activation
