IP 65
Optimized for 8-12cm depth signs
20 modules in one string
160° beamangle

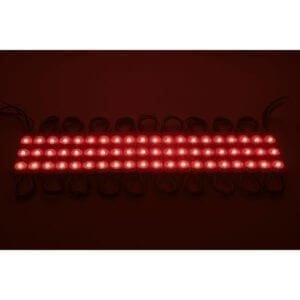

The Cayenne RGB and RGBW series are modules intended for use in signage solutions. They are especially designed for use in signs of 8 to 15 cm depth. Each module is 85mm wide and contains 3 LED’s. The power of each module is 0,65W and 20 modules are in one string. One string is 7,8W Power supply is done by any 12VDC power supply. Multiple strings can be connected parallel to a single power supply. We do not recommend to connect multiple strings in serial.
For a 8 cm deep sign the ideal distance between the modules is 12 x 7cm
For a 10 cm deep sign the ideal distance between the modules is 14 x 9cm.
For a 12 cm deep sign the ideal distance between the modules is 16 x 11cm.
For a 15 cm deep sign the ideal distance between the modules is 19 x13cm.
IP-classificatie: IP 65
Stralingshoek: 160 °
Ingangsspanning: 12 VDC
Snijlengte: 100 mm
Led: SMD 5050 LED
Afmetingen: 85 x 17,5 x 6,3 mm
Output in Lumen/m: 33 lm
PCB-kleur: White
Led-kleur: RGB
