Argon VCA

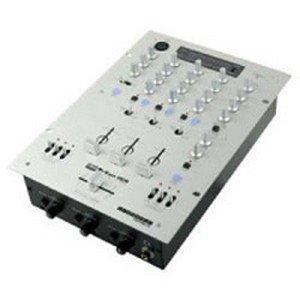

The DAP Argon is a compact VCA-controlled 14"DJ mixer. Due to the use of VCA controlled faders it has an outstanding sound-quality as well adjustable fader curves.
- VCA controlled Cross and Channel Fader (Fader 1 and 3)
- Cross fader Curve adjustable
- Optical cross fader
- Output and CUE level selectable for level meter
- Microphone talkover function
- Send/return function
- 3 band +10/-40dB Kill EQ for each channel
- 4 direction placement for input selector
Technische info:
- Input/Output Impedance and sensitivity
- Line: 10kOhm/-14dBV (200mV) +/-2dB
- Aux: 47kOhm/-14dBV (200mV) +/-2dB
- Phono: 47kOhm/-54dBV (2mV) +/-2dB
- Mic: 2,2kOhm/-54dBV (2mV) +/-2dB
- Return: 10kOhm/-14dBV (200mV) +/-2dB
- Send: 1kOhm/-14dBV (200mV) +/-2dB
- Rec: 1kOhm/-10dBV (316mV) +/-2dB
- Master XLR: 600 Ohm/+1,78dBm +/-2dB
- Phones -load: 32 Ohm 33 Ohm/-3dBV (707mV) +/-2dB
- Frequency response:
- Line/Tape/CD/Video: 25Hz-20kHz +1,5dBV/-2dBV
- Phono: 25Hz-20kHz +1,5dBV/-3dBV (RIAA)
- Microphone: 25Hz – 20kHz +1dBV/-2dBV
- Return: 25Hz – 20kHz +1dBV/-3dBV
- Output Noise
- Line: Less than -82dBV
- Phono: Less than -66dBV
- Microphone: Less than -62dBV
- EQ
- Mic: 12 +/- 2dB AT 100 & 10kHz -12 +/- 2dB AT 100 & 10kHz
- Channel: 0 +/- 1,5dB AT 70, 1k & 13 kHz Below -38dB AT 70, 1k & 13 kHz
