Affordable pricing
Lightweight
High refresh rate
Novastar Control

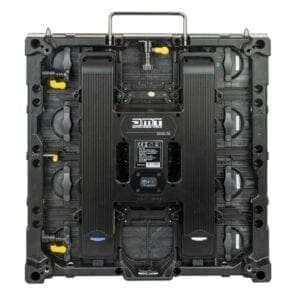

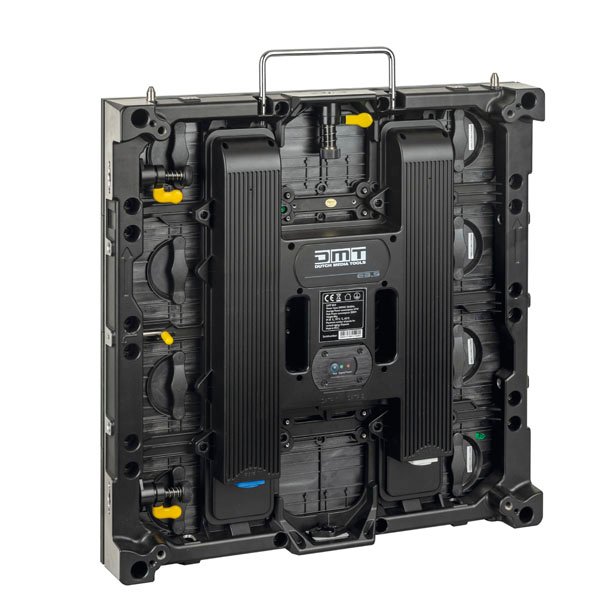

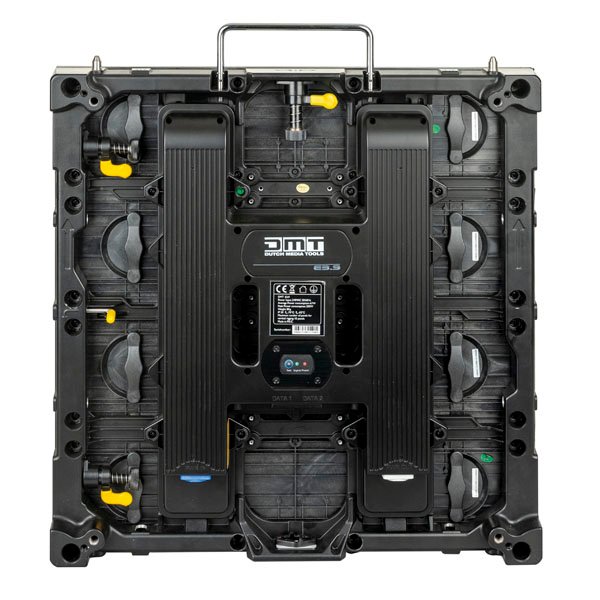

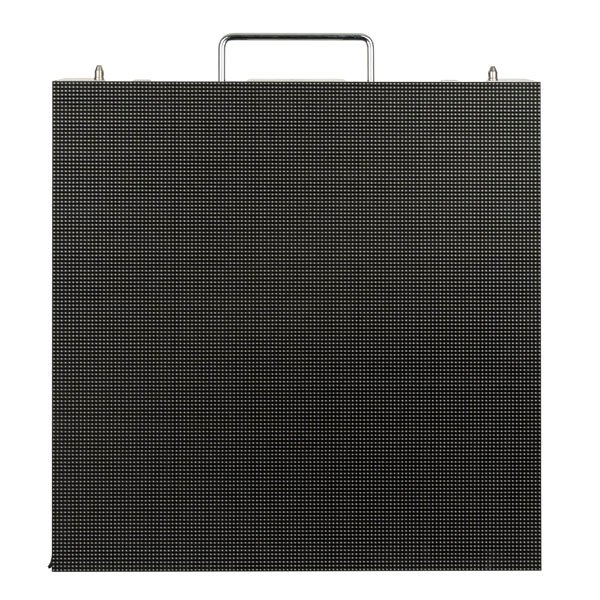

The E3.9N-MKII Indoor is an affordable HD Led screen with a pixel pitch of 3,9mm. It has a lightweight and modular design and is suitable for a wide range of applications. Mechanical connection is easy and fast due an innovative quick lock system. The power- and data box can be removed easily in order to ensure fast service at any time. On the backside of the panel there are two status LED. One to indicate the power connection and a second one to indicate the data connection. Power connection is done by blue and white power connector. Data by RJ45 connectors. A carrying handle on the top functions as an ergonomic carrying handle.
Voeding: 100 – 240 VAC
Gewicht: 8.4 kg
Aansluiting data: RJ45
IP-classificatie: IP 20
Refresh rate: >2000 Hz
Koeling: Convection
Kijkhoek: 140 x 140 °
Pixelpitch: 3.91 mm
Pixels per kast: 128 x 128 px
Led-lichtbron: SMD2020 Black Frame
Afmetingen kast: 500 x 500 x 78 mm
Luminantie: 1500 Nit
Stroomverbruik max.: 122 W
Stroomverbruik gemiddeld: 67 W
Kastverhouding: 1:1
Rigging verticaal max.: 20 panels
Gebogen hoeken: N/A
Besturing: Novastar
Ontvangerkaart: MRV 220-2
Aansluiting voeding: Pro Power in- & output
Locking System: Fast Lock System
