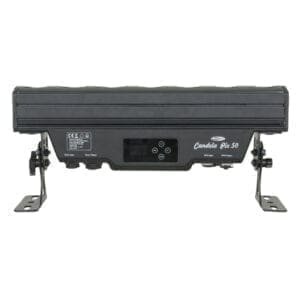

Showtec candela pix 50

Powercon TRUE1 in & out
IP 65-rating
Uitzonderlijk gelijkmatige RGBW-kleurmenging
Pixelcontrole

The Showtec Candela series are two very powerful Pixel bars using the latest technology 15W RGBW Prolight Opto Led’s. The fixtures are fully IP65 rated and have a robust aluminum housing which makes them perfect for both indoor and outdoor use. Unique to the Candela series are the optional changeable diffusers. The bar comes with an 8° beam angle and you can easily adapt to the specially designed 20° and 40° diffusers to create a wider beam. Besides that, the bars can be fully pixel controlled by DMX and have an on-board menu for manual RGBW dimming and built in auto programmes which are accessible on the bright OLed display.

Output
Lux (op 2 meter): Rood 1733
Lux (op 2 meter): Groen 4680
Lux (op 2 meter): Blauw 810
Lux (op 2 meter): Wit 5758
Lux (op 2 meter): Volledig 9450
Maximale afstand: 10 m

Lichtbron
Led-systeem: 7 x 4-in-1 RGBW-led, 15 W
Stroomaandrijving: 1000 mA
Refresh rate: 3 KHz

Elektrisch
Voeding: 100~240 VAC, 50/60 Hz
Stroomverbruik: 105 W op vol vermogen

Besturing
Besturingsstand: DMX, automatisch, master/slave
Display: O-LED Touch
DMX-kanalen: 4, 6, 8, 28
IP-classificatie: IP65

Optisch systeem
Dimmer: 0-100%
Stroboscoop: 0-20 Hz
Stralingshoek: 8°

Fysiek
Afmetingen: 511 x 150 x 227 mm
Gewicht: 6,5 kg
Behuizing: Aluminium
IP-classificatie: IP65
Lensplaat: Gehard glas
Kleur: Zwart
Fixture-aansluiting: Powercon True in/out, XLR (3-polig) DMX in/out IP-geclassificeerd
Koeling: Aluminium behuizing

Veiligheid
Bedrijfstemperatuur: -5~40°C
