Intuitive and easy to use interface
10.1” Full Colour Touchscreen

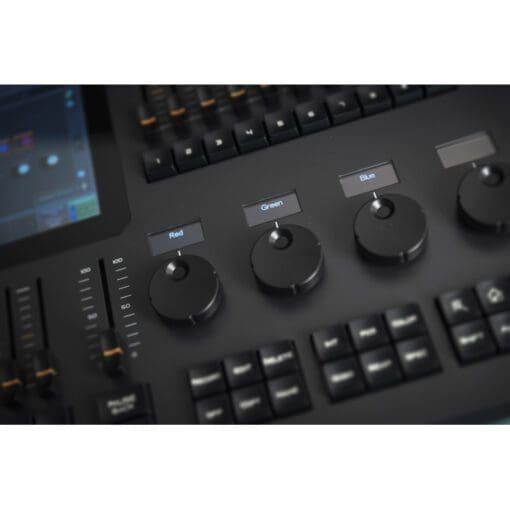

Colour Picker with Quick colours and Filter library
Built-in Effects engine
Programming section with multiple 1.3” O-LED display

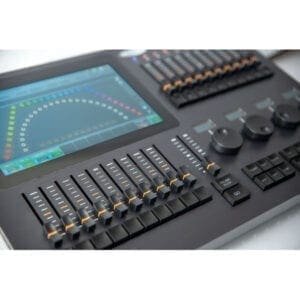

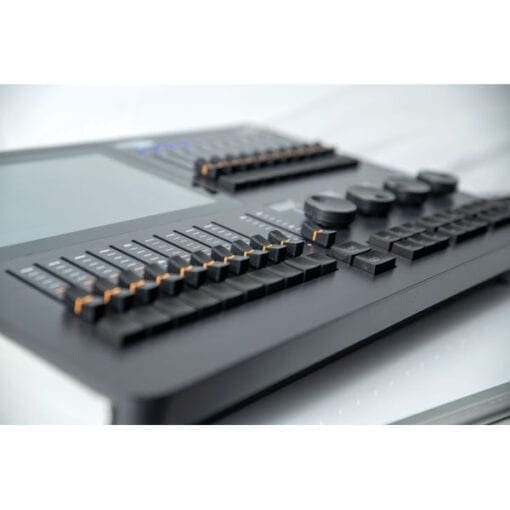

The Showtec LMPY console range is designed to maximize creativity with the most logical and user friendly work surface in mind. The range consists of 2 consoles in both 2 different feature sets. The programming section is minimalistic but optimized to the need and features multiple 1.3” O-LED displays for providing all the necessary info to the user. All consoles also feature a 10.1” touchscreen with an intuitive and user-friendly interface which is instantly recognizable. Below the touchscreen, the 10 playbacks can store anything from a group-master up to chases and complex cue-lists. Next to it a dedicated master cue stack section can be found. 9 memory pages will ensure plenty of storage space for your show. Depending on the model, the LMPY consoles have 10 or 30 extra multi-function faders available. They can be assigned as fixture selection/dimmer, group-masters or scenes with an RGB indication LED showing the current fader mode/state or output colour. A total of 40 virtual executors are available on the touchscreen or external monitor. This way users can freely layout their show depending on their specific conditions for usage during events, touring productions, theatres, house of worship or schools. Standard all consoles provide a single DMX universe. By adding the LMPY Dongle another universe is available, together with enabling ArtNet, sACN, OSC and the magic sheet on the external screen output.
Stroomverbruik: 35 W
Gewicht: 8.8 kg
Afmetingen LxBxH: 505 x 345 x 128 mm
Behuizing: Metal & Flame retardant plastic
DMX-kanalen: 512
Ingangsspanning: 100 – 240 VAC
Omgevingstemp.: 0 ~ +35 °C
Display: 10.1 Inch Full Color Touchscreen
Aansluiting voeding: Pro Power input
Aansluiting DMX: 2x XLR 3p / 2x XLR 5p
USB-aansluiting: 4
Fixtures: 512
DMX-universes: 1
DMX-uitgangen: 4
Playback faders: 20
Playback keys: 20
Parameterknoppen: 4
Ethernetpoorten: 1
Connection Midi: In, Thru, Out
Display External: 1 DVI Connection
Faders: 20 + 1
Worklight: Yes, Dimmable
Playback Pages: 9
Display Encoders: 4x 1.3 inch O-Led
Buttons : 18 x Dedicated Program Buttons, Go+ / Go-
Artnet: Optional
sACN: Optional
OSC (Open Sound Control): Optional
Cuelists: 90
Audio Input: 6.5 mm Jack
Audio Triggers: 3
Fuse: Internal
