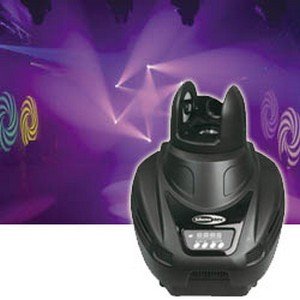

Pre-experience the future! Showtec brings you another revolutionary fixture. The Revolution- 250 is an evolved combination of a moving head and a scanner with high lightoutput (HSD-250W). It has a stylish and compact design, which will fit on every stage or in every interior. It has some unique features such as continuous rotating head (both Pan and Tilt function). The channel-settings and the features for both versions are the same.
Technical Information
- 10 dichroic colors plus one 3200K CTC color and white
- 6 rotating and indexable gobos
- 2 glass gobos
- Rotating prism
- DMX controlled focus
- High speed shutter (1-7 flashes per second)
- Smooth dimmer (0-100%)
- Digital addressing
- 360 degrees Pan movement
- 360 degrees Tilt movement
- 16 bit resolution
- Revolution 250: 300W
- Lamp: HSD 250/78W GY-9.5
- (Osram: 80933O)
- Dimensions: (LxWxH)
- 430x460x400 mm
- Weight: 19 Kg
- DMX Channel Control, 12 DMX Channels:
- CH1: Dimmer, shutter and flash
- CH2: 11 colors & corr. filter & color-rainbow
- CH3: 6 gobos & open
- CH4: Goborotation L&R + gobochange
- CH5: 3 Facet prism with rotation
- CH6: Focus adjustment
- CH7: Pan adjustment
- CH8: Tilt adjustment
- CH9: Pan rotation
- CH10: Tilt rotation
- CH11: Reset
- CH12: Lamp switch on/off
