Beschrijving
Specificaties:
Power Rating: 150W/Channel @ 8 Ohms
Channels: 8
Input Sensitivity: 1.4V
Frequency Response: 20Hz – 20kHz 0.5dB
Signal-to-Noise Ratio: 110dB
Total Harmonic Distortion (THD): < 0.05%
Intermodulation Distortion (SMPTE): < 0.05%
Crosstalk: > 70dB
Common Mode Rejection Ratio: > 55dB, > 70dB Typical

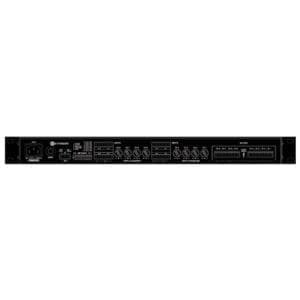

Connectors: 8 x 3-Pin Phoenix Inputs 8 x 2-Pin Phoenix Outputs 1 x Power Input
Controls: 8 x Input Attenuator Knobs 1 x Set of Amp Control DIP-Switches 1 x Power Switch
Indicators: 1 x Power LED 8 x Signal LEDs 8 x Clip LEDs 8 x Thermal LEDs 8 x Fault LEDs
Cooling: Convection
Power Requirements: Universal Power Supply
Dimensions (HxWxD): 1.75 x 19 x 14.25″ (44 x 483 x 362mm)
Weight: 10 lbs (4.54kg)
