Wide range DC input voltage
fully isolated inputs and outputs
RDM compliant
DIN EN43880 form factor
DIN EN60715 rail system

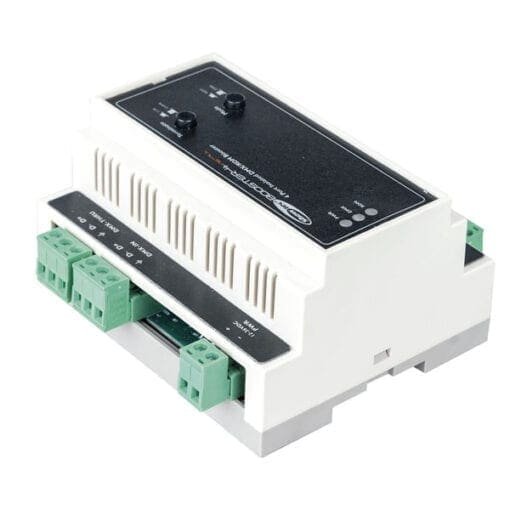

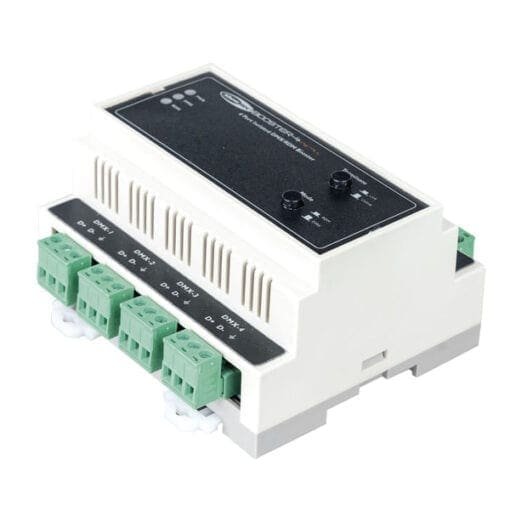

The Showtec Booster-4 Install is the ideal compact fixed-installation booster for you. All connections are easy connectable with the plug-in Phoenix terminals, and both inputs as all outputs are optically isolated to prevent any interference from getting hold of your signal. The din-rail mounted Booster distributes both DMX and RDM and is ideal for network system integration projects.
Stroomverbruik: 9 W
Gewicht: 0.18 kg
Behuizing: UL94-V0 flame retardant polycarbonate
Kleur behuizing: Grey
Besturingsstand: DMX-512A / RDM
Montage: 35mm DIN rail system
Omgevingstemp.: 0 ~ +40 °C
Aansluiting input: Phoenix
Montagegrootte: 6 TE
Aansluiting output: Phoenix
Afmetingen: 106 x 87 x 58 mm
Voeding extern: 12-36VDC, 500mA
