Compact Design
Convection Cooling
Easy Linking of Power and DMX
RGBW LED Source

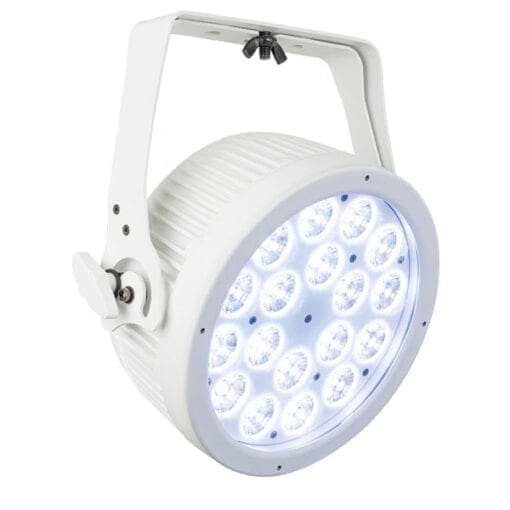

The Showtec Compact Par 18 Q4 is a powerful Parcan equipped with 18 x 7W RGBW LEDs. Because of its optimized lenses, the Compact Par 18 Q4 produces a bright beam with vivid colours and excellent colour mixing capabilities. Common connectors enable a perfect fit in any gig or tour. Also 3 and 5 pole XLRs are standard as well as power connectors by ProPower Blue and ProPower White.The LCD display allows for fast setup and an easy operation of the fixture.
Voeding: 100~240VAC, 50/60 Hz VAC
Stroomverbruik: 132 W
Gewicht: 5.2 kg
Afmetingen LxBxH: 313 x 302 x131 mm

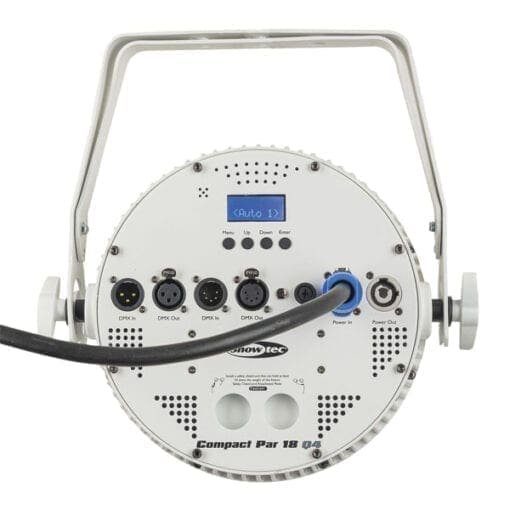

Aansluiting data: XLR 3 & 5p in / out
Behuizing: Die-cast Aluminium
Certifcatie: CE
IP-classificatie: 20
Lichtbron: 18x7W RGBW LED
Stralingshoek: 15 °
Refresh rate: 12.000 Hz
DMX-kanalen: 4,6,10
Dimmer: 0-100 %
Stroboscoop: 20 Hz
Lux op 2m: 10000 Lux
Besturingsstand: DMX. Manual. Auto
Koeling: Convection
Omgevingstemp.: -10 ~ 40 °C
Aansluiting voeding: Pro Power in- & output
